Canada’s oil and gas industry is among the best in the world when it comes to reducing air emissions from flaring, according to a new analysis by the Canadian Energy Centre.
Flaring is the controlled burning of waste gases from oil and natural gas operations, resulting in the release of greenhouse gases (GHGs) and other emissions. In 2018, 145 billion cubic metres (bcm) of flared gases were emitted worldwide, resulting in just under 280 megatonnes of CO2-equivalent GHG emissions — approximately one per cent of global GHGs.
Data from the World Bank and U.S. Energy Information Administration show that Canada ranks 22nd out of the world’s top 30 countries for flaring, despite being the fourth-largest oil and gas producer. Canada’s flaring emissions were 1.3 bcm in 2018, while Russia was the highest at 21.3 bcm, followed by Iraq (17.8 bcm), Iran (17.3 bcm) and the United States (14.1 bcm).
Canada also showed the second-largest decrease in flaring over the five years between 2014 and 2018 – a 38 per cent decrease, second only to Kazakhstan which reduced flaring by 49 per cent. The magnitude of this decrease is significant because it occurred at the same time as oil and gas production in Canada rose by 22 per cent.
This Fact Sheet (which can be downloaded here as a pdf) analyzes the record on flaring and venting of gases in Canada’s upstream oil and gas industry relative to other countries. The issue, while technical in nature, is relevant given that this is a source of greenhouse gas emissions (GHGs). For example, in 2018, 145 billion cubic metres (bcm) of flared gases were emitted worldwide, or just under 280 megatonnes of CO2 equivalent. It is also relevant given that Canada is a major producer of oil and natural gas, with the third-largest proven reserves of crude oil and the 17th largest reserves of natural gas, and the fourth-largest producer of both commodities.
Flaring and venting are two ways in which an oil or natural gas producer can dispose of waste gases. (Venting is the intentional controlled release of un-combusted gases directly to the atmosphere, and flaring is a disposal by combustion of natural gas or gas derived from petroleum.¹) As Matthew R. Johnson and Adam R. Coderre noted in their 2012 paper on the subject, flaring in the petroleum industry generally falls within three broad categories:
- Emergency flaring (large, unplanned, and very short-duration releases, typically at larger downstream facilities;
- Process flaring (intermittent large or small releases that may last for a few hours or a few days, as occurs in the upstream industry during well-test flaring to assess the size of a reservoir or at a downstream plant during a planned process blowdown); and,
- Production flaring (which may occur continuously for years as the resource, oil, is being produced).
1. Many provinces regulate flaring and venting including Alberta (Directive 060) British Columbia (Flaring and Venting Reduction Guideline), and Saskatchewan (S-10 and S-20). Newfoundland & Labrador also has regulations that govern offshore flaring.
To track GHGs from flaring and venting, Environment Canada defines such emissions as:
- Fugitive emissions: Releases from venting, flaring or leakage of gases from fossil fuel production and processing; iron and steel coke oven batteries; CO2 capture, transport, injection, and storage infrastructure.
- Flaring emissions: Controlled releases of gases from industrial activities, from the combustion of a gas or liquid stream produced at the facility, the purpose of which is not to produce useful heat or work. This includes releases from waste petroleum incineration; hazardous emission prevention systems (in pilot or active mode); well testing; natural gas gathering systems; natural gas processing plant operations; crude oil production; pipeline operations; petroleum refining; chemical fertilizer production; and steel production.
- Venting emissions: Controlled releases of a process or waste gas, including releases of CO2 associated with carbon capture, transport, injection, and storage; from hydrogen production associated with fossil fuel production and processing; of casing gas; of gases associated with a liquid or a solution gas; of treater, stabilizer or dehydrator off-gas; of blanket gases; from pneumatic devices which use natural gas as a driver; from compressor start-ups, pipelines, and other blowdowns; and from metering and regulation station control loops.
This Fact Sheet provides international data comparisons on flaring only (given limited international data on venting) based on World Bank data. It also compares flaring by country with production for major petroleum (and others liquids) producing countries using U.S. Energy Information Administration (IEA) data.
Table 1 shows gas flaring volumes in 2014 and 2018. In absolute terms, Russia recorded more flaring than any other country at 21.3 billion cubic metres (bcm) in 2018, three bcm or 16 per cent higher than in 2014. Among the 30 countries measured, Australia flared the least at 0.9 bcm or 18 per cent less than in 2014. Canada was the 22nd lowest in 2018 at 1.3 bcm, and recorded a decrease of 0.8 bcm from 2.1 bcm in 2014, or 38 per cent.
Source: World Bank
Ten countries flared more in 2018; 20 countries flared less

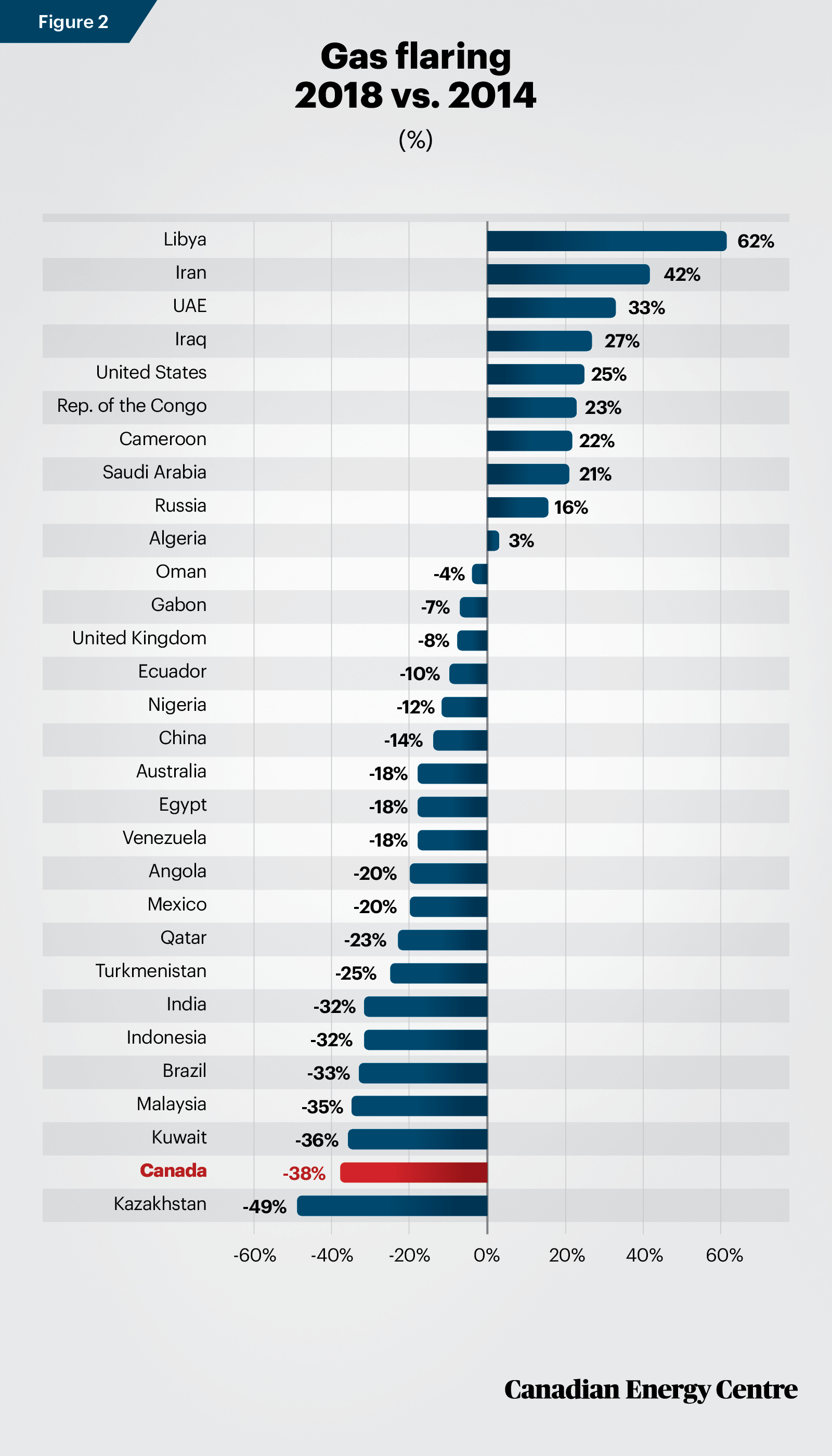

Figure 2 also shows changes in flaring volumes. In total, ten countries flared more in 2018 compared with 2014, while 20 countries flared less.
• The countries that showed the greatest increase in flaring were the United Arab Emirates (33 per cent), Iran (42 per cent) and Libya (62 per cent).
• The countries that showed the greatest decrease in flaring were Kazakhstan (-49 per cent), Canada (-38 per cent) and Kuwait (-36 per cent).
Source: World Bank

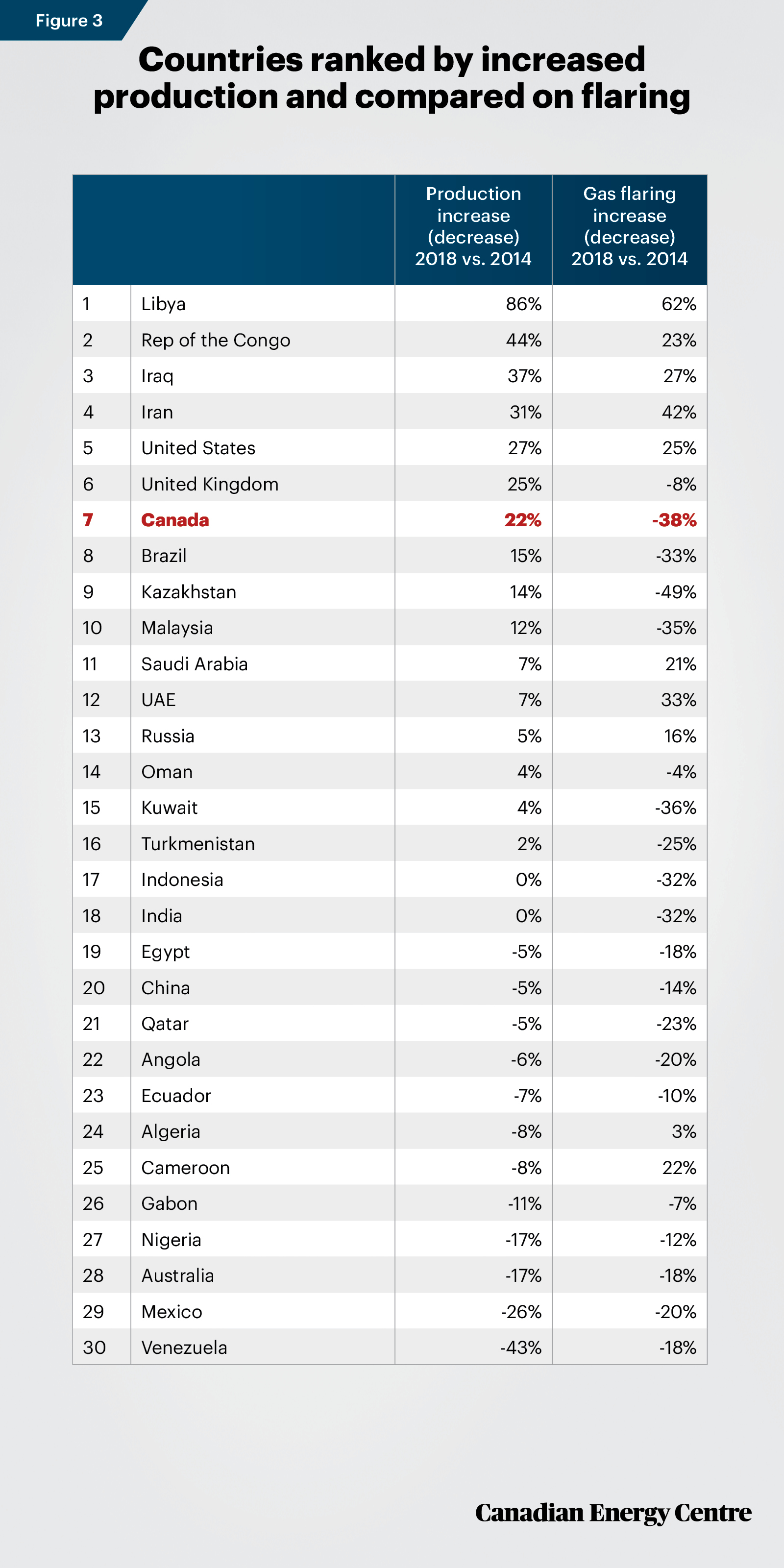

Figure 3: Comparing flaring to increased production
• The decreases for Canada in Figures 1 and 2 understate the magnitude of the decrease in flaring between 2014 and 2018. The reason for that is that Canada’s production of petroleum and other liquids has increased by 22 per cent, all the while decreasing flaring by 38 per cent.²
• In contrast, Venezuela, as one example, decreased flaring by 18% but this was driven in part by steep production declines (43 per cent less in 2018 compared to 2014).
• In another example, the United States increased production of petroleum and other liquids by 27 per cent, similar to Canada’s 22 per cent rise, but unlike Canada, U.S. flaring increased by 25 per cent.
To fully grasp how much more efficient Canada has been in reducing flaring, Figures 3 compares both flaring and production.
2. As per the U.S. Energy Information Administration data sources, this measurement includes the production of crude oil (including lease condensate), natural gas plant liquids, and other liquids. It also includes refinery processing gain for volume (TBPD) only
Sources: World Bank and U.S. Energy Information Administration
Global flaring and venting of gases contribute to greenhouse gas emissions. Canada is an example of a producer country of petroleum and other liquids where a significant reduction in flaring has occurred not only in absolute terms but also when compared with increased production volumes.
This CEC Fact Sheet was compiled by Ven Venkatachalam and Mark Milke at the Canadian Energy Centre: www.canadianenergycentre.ca. The authors and the Canadian Energy Centre would like to thank and acknowledge the assistance of Philip Cross and Dennis Sundgaard in reviewing the data and research for this Fact Sheet. Image credit: ‘Oil refinery in industrial estate at sunset’ by Kampee Patisena.
